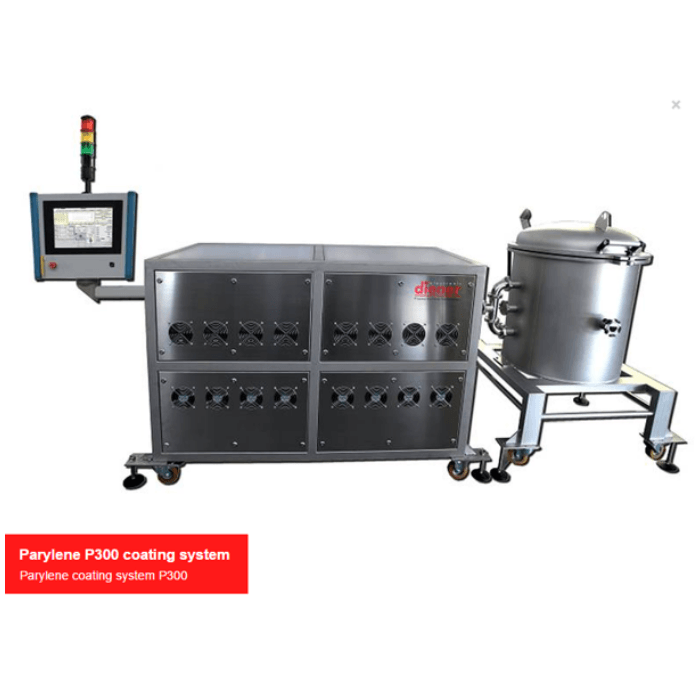

Diener PARYLENE P300


Deposited materials:
parylene N, C, D, F-VT4

Range of thicknesses:
0,05 to 100 micrometers

Dimensions:
width approx. 2700 mm
depth approx. 2200 mm
height approx. 1600 mm

Pyrolysis:
4 kW / max. 850 °C



Chamber:
diameter: 700 mm
height: 720 mm

Carrousel:
diameter: 600 mm

height: 660 mm

Cold trap:
liquid N² (LN2)

Pumping system:
two-stage rotary pumping speed
1800 m3/h

Control: full PC control system
software based on Windows

Connections:
3 phases / 400 V / 32 A / 50- 60 Hz

Compressed air: 6 bars oil free and dry
