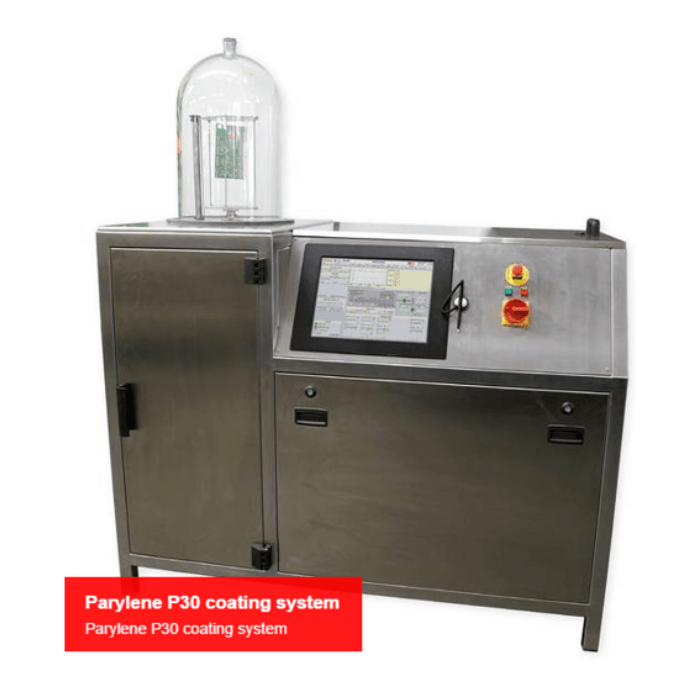

Diener PARYLENE P30

Deposited materials:
parylene N, C, D, F-VT4

Range of thicknesses:
0.05 to 50micrometers

Dimensions:
width: approx. 1400 mm
depth: approx. 700 mm
height: approx. 1700 mm

Pyrolysis:
2 kW / max. 700 °C

Chamber:
diameter: 310 mm
height: 500 mm

Carrousel:
diameter: 150 mm
height: 270 mm

Cold trap:
Liquid N2

Pump system:
two-stage rotary vane
pumping speed 25 m3/h

Ultimate pressure:
1 x 10-3 mbar

Control:
full PC control system,  software based on Windows

Connections:
400 V/16 A/50-60 Hz ,Compressedair
