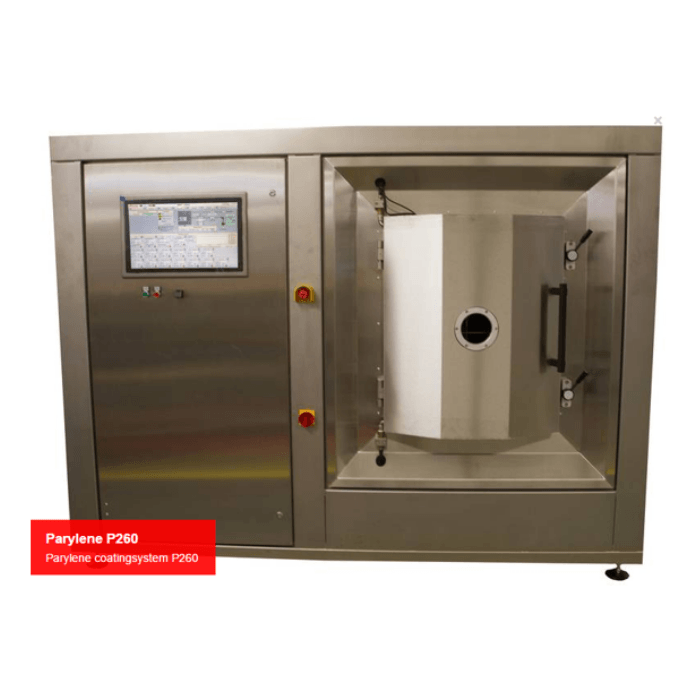

Diener PARYLENE P260


Deposited materials: parylene N, C, D, F-VT4, F-AF4

Range of thicknesses: 0,05 to 100 micrometers

Dimensions:

width: approx. 2600 mm

depth: approx. 1000 mm

height: approx. 2000 mm

Pyrolysis: 4 kW / max. 850 °C

Gas injection: homogenous dispersal system

View into the coating chamber of the P260

Chamber:  diameter: 640 mm, height: 800 mm

Carrousel: diameter: 560 mm, height: 650 mm

Cold trap: liquid N2

Pump system
two-stage rotary pumping speed 1800 m3/h

Ultimate pressure
1 x 10-3 mbar

Control:
full PC control system,
software based on Windows
