Diener PARYLENE P120D

Deposited materials:
parylene N, C, D, F-VT4

Range of thicknesses:
0.05 to 50 micrometers

Dimensions:
width: approx. 2200 mm
depth: approx. 2700 mm
height: approx. 1600 mm

Pryolysis:
4 kW / max 850°C

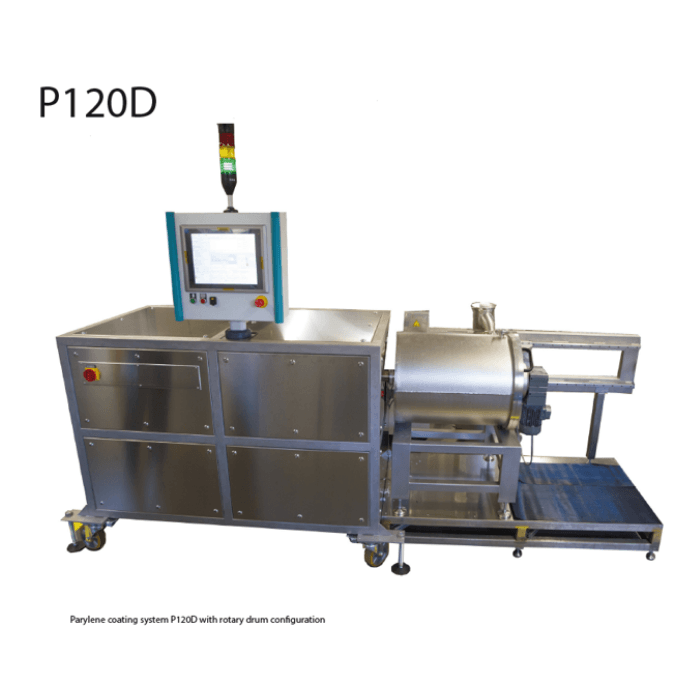

Parylene coating system P120 D
with rotary drum configuration
(side view)

Chamber:
diameter: 500 mm
length: 610 mm
Volume: approx. 120 litres

Rotary drum:
diameter: 445 mm
length: 580 mm
Volume: approx. 90 litres

Cold trap:
Liquid N2

Pump system:

dry pump system
pumping speed 1800 m3/h

Ultimate pressure:
1 x 10-3 mbar

Control:
full PC control system,
software based on Windows

Connections:
3 phases/400 V AC at 32 A/50-60 Hz
Compressed Air: 6 bars oil free and dry
