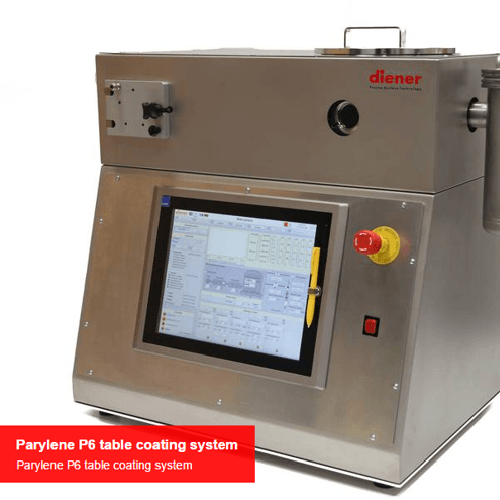

Diener PARYLENE P6

Deposited materials: parylene N, C, D, F-VT4

Range of thicknesses: 0.05 to 20 micrometers

Dimensions: width: ±700 mm //  depth: ±500 mm // height: ±700 mm

Pyrolysis: 1.6 kW / max. 750 °C

Chamber:  diameter: 200 mm // height: 200 mm

Carrousel: diameter: 170 mm  //  height:170 mm

Cold trap: Liquid N2

Pump system: two-stage rotary vane // Pumping speed 16 m3/h

Ultimate pressure: 1 x 10-3 mbar

Control: full PC control system, software based on Windows

Connections: 230 V/16 A/50-60 Hz
